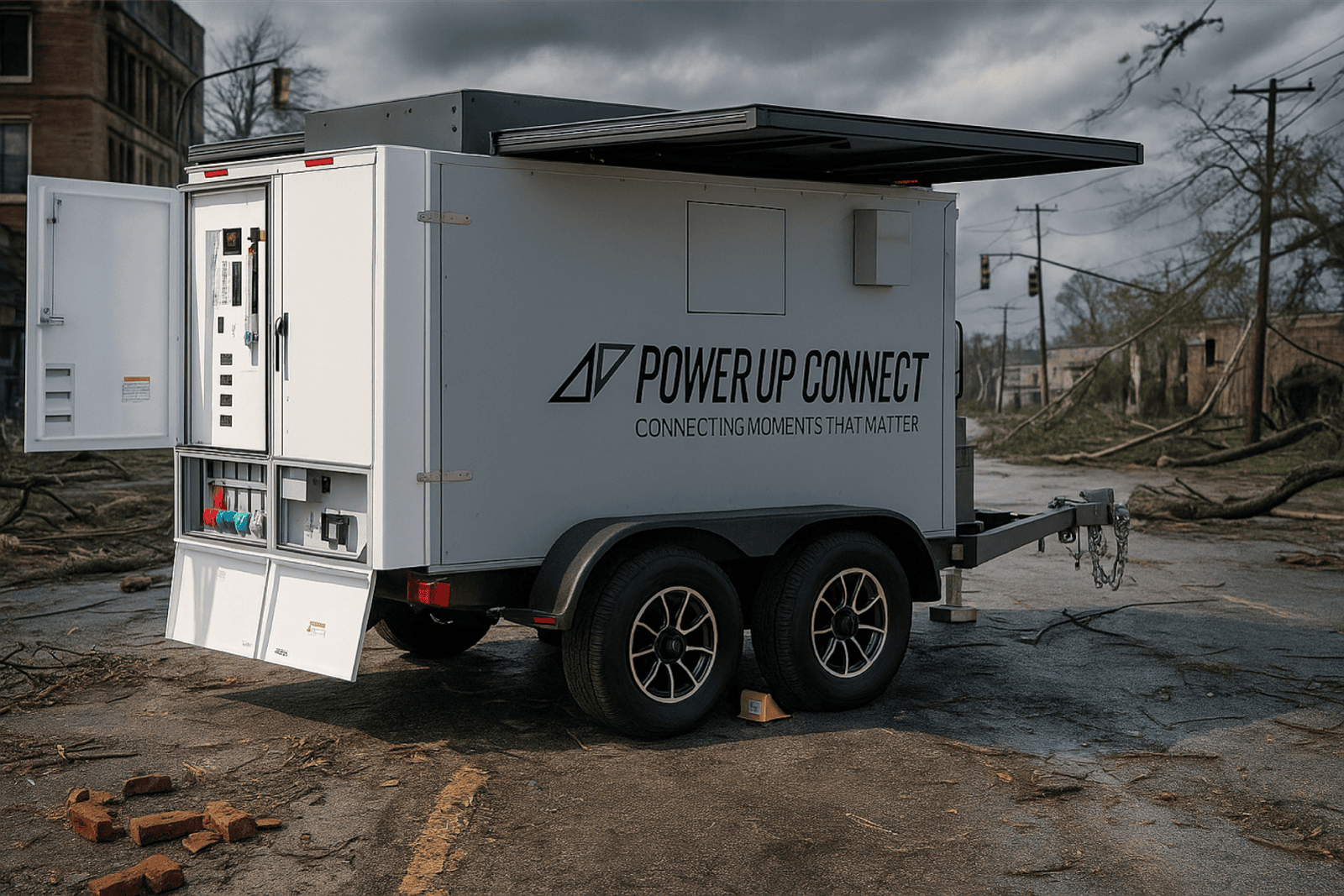

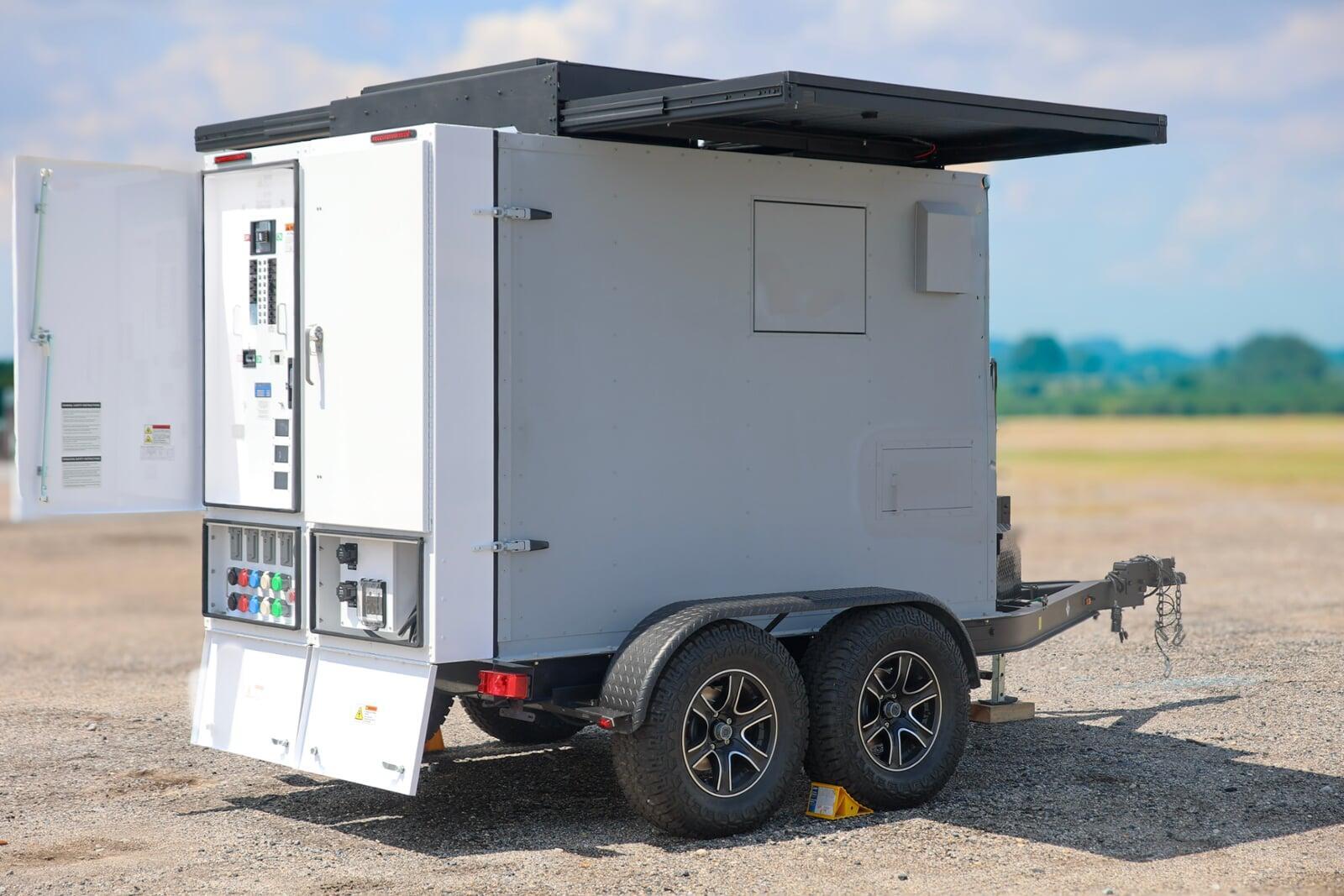

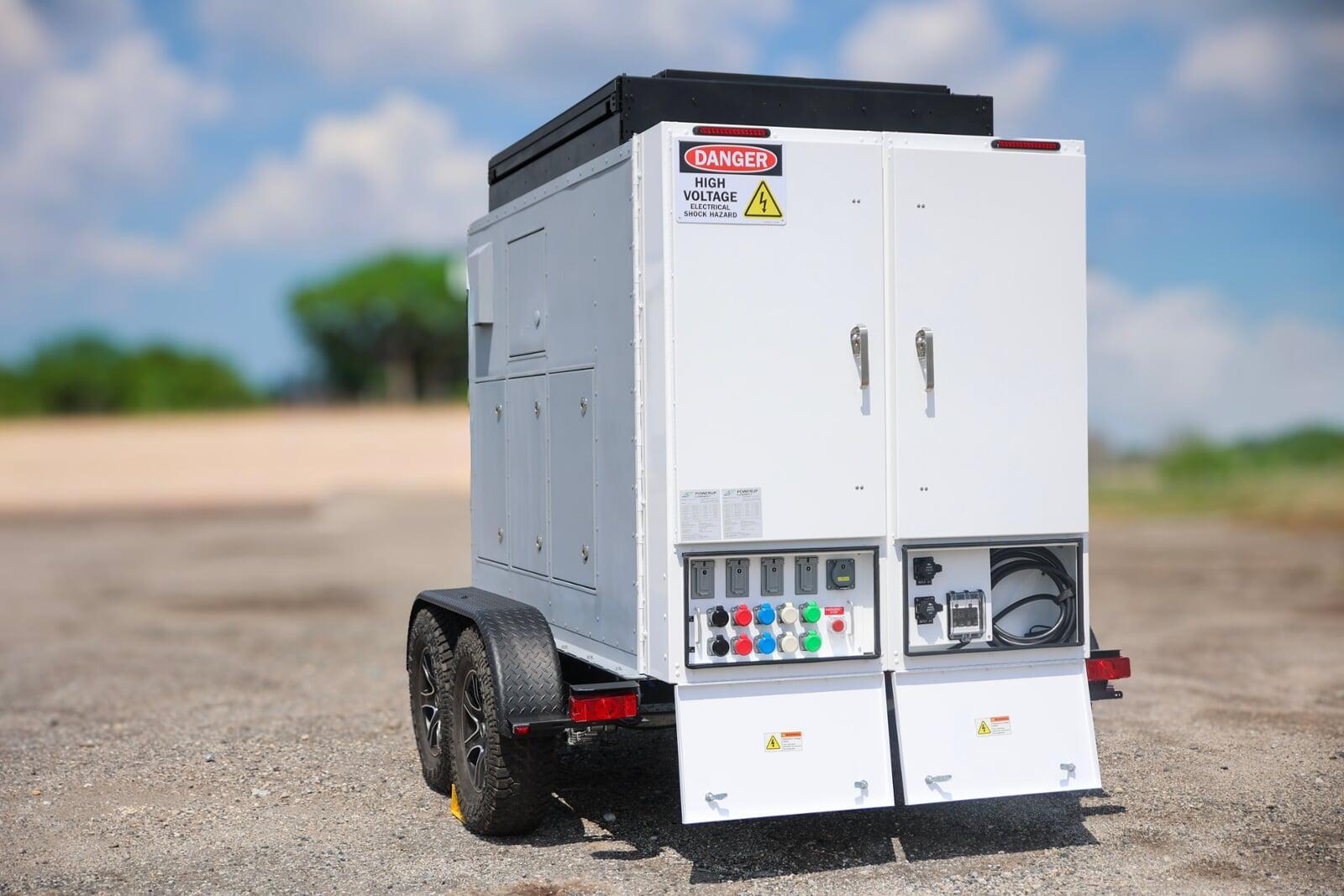

The GREEN GRID 90kilowatt-hour MBESS that outputs at 20 kVA continuous power. It’s the first UL9540 certified mobile solution, meeting the highest standards of safety, patent pending by Dominion Energy and built as a clean, scalable alternative to diesel.
It delivers both 120V and 208V three-phase power, with deployable rooftop solar panels, so it’s continuously recharging.
It can charge Electrical Vehicles and it can also recharge itself—whether from an EV charging station, the grid, or external PV inputs. And when needed, it can operate as a hybrid system, using a generator to recharge efficiently matching output to demand, running longer at low loads, reducing fuel consumption and operating costs.
Emergency / Disaster Use Cases:
Back-Up Power for Shelters / Housing, Donation Centers, Medical Sites, Critical Businesses, Resiliency Hubs, Mobile Internet & 911 & 1st Responders.
Utility Use Cases:
EV Fleet Ops, ePTO Field Re-charge, Facilities Back-Up, Mobile Microgrid, Events, Festivals.
PATENT PENDING BY DOMINION ENERGY
| DESCRIPTION | SPECS |
|---|---|
| Product Dimensions | 8'4" H x 5' W x 15' L |
| Product Weight | 5,000 lbs. |
| Shipping Dimensions | 8'4" H x 5' W x 15' L |
| Shipping Weight | 5,000 lbs. |
| Max Output Power | 30kVA |
| Continues Power | 20kVA |
| 120/208V Outlet 30A | 1 |
| 120/208V Outlets 60A | 1 |
| 120V Outlets 20A | 4 |
| 120V Outlets 30A | 1 |
| Charging Output 208V 77A | 2 |
| Solar Array | 1100 Watts |
| Custom Branding | Yes |
| UL1973 & UL9540A | Yes |
| Warranty | Limited 10 year with Service Contract |
